Mexen G05 axial thermostatic set with R cover, anthracite - W903-958-904-66

  • Mexen in Black
Mexen G05 axial thermostatic set with R cover, anthracite - W903-958-904-66
search
  • Mexen G05 axial thermostatic set with R cover, anthracite - W903-958-904-66
  • Mexen G05 axial thermostatic set with R cover, anthracite - W903-958-904-66
  • Mexen G05 axial thermostatic set with R cover, anthracite - W903-958-904-66
Mexen G05 axial thermostatic set with R cover, anthracite - W903-958-904-66
Mexen G05 axial thermostatic set with R cover, anthracite - W903-958-904-66 Mexen G05 axial thermostatic set with R cover, anthracite - W903-958-904-66 Mexen G05 axial thermostatic set with R cover, anthracite - W903-958-904-66
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G05
Ean:
5905315237705
Index:
W903-958-904-66
Colour:
Anthracite
Connection diameter:
G 1/2"
Type:
Axial
Series:
G05
Colour - Anthracite - ()

Mexen G05 axial thermostatic set with R cover, anthracite - W903-958-904-66

Mexen G05 axial thermostatic set with R cover, anthracite - an excellent choice for a modern bathroom. The brass valves and stainless steel rosettes ensure high durability. The set features an adjustable temperature range from 0 to 29°C and a maximum operating temperature of up to 120°C, guaranteeing optimal performance. The anthracite colour adds elegance, and frost protection increases safety in use. The cover consists of rosettes and a bushing, making installation easier.

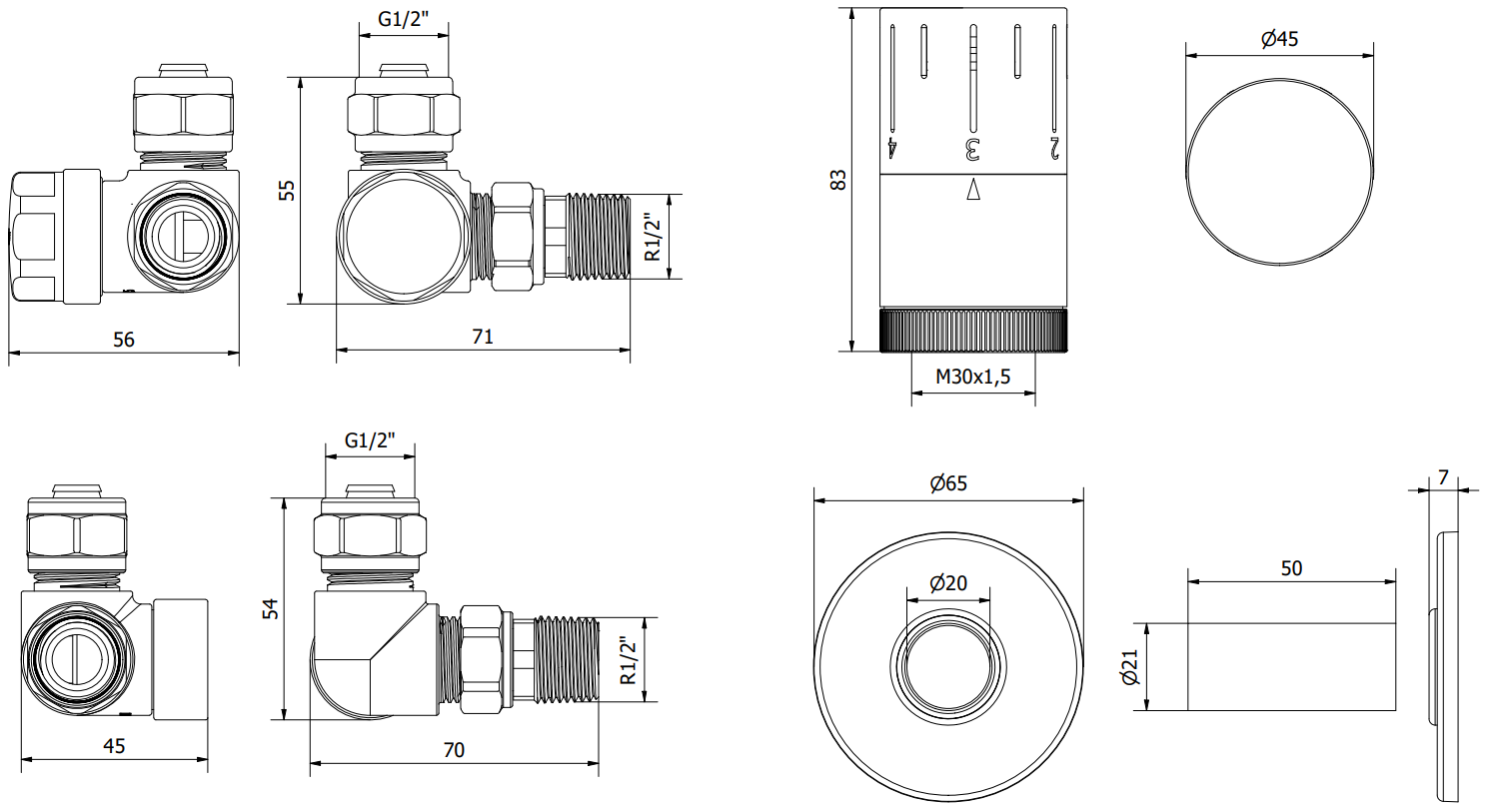

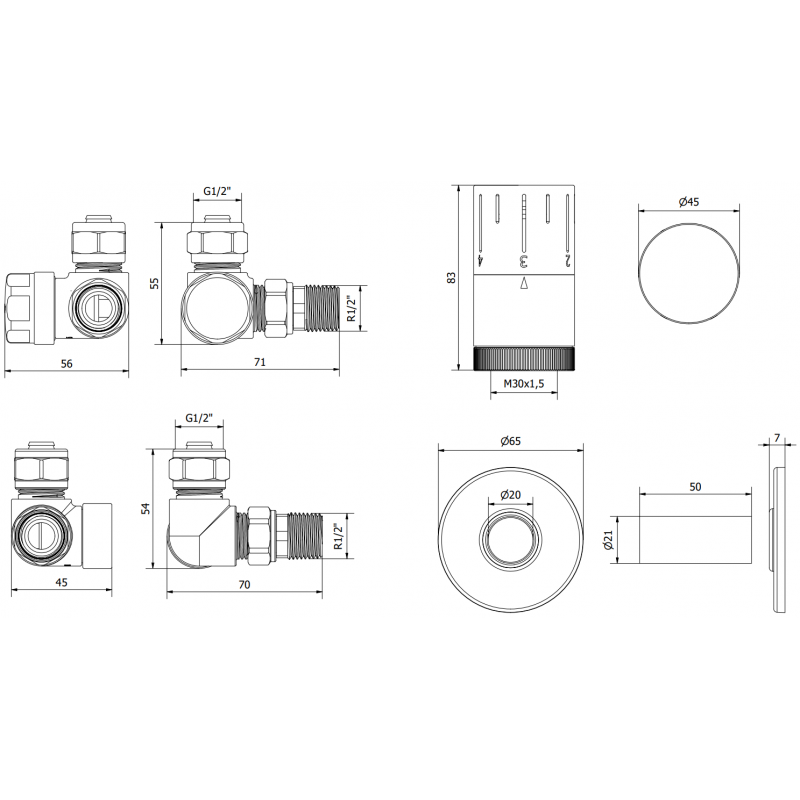

Technical data:

Valve material: Brass

Valve colour: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Mask cover colour: Anthracite

Rosette material: Stainless steel

Outer diameter of rosettes: 65 mm

Height of rosettes: 7 mm

Internal diameter of the hole: 21 mm

Bushing material: Brass

Length of bushings: 50 mm

Internal diameter of bushings: 20 mm

The cover consists of two single rosettes and a bushing

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G05
Type
Axial
Colour
Anthracite
Connection diameter
G 1/2"
Cover
Yes
