Mexen G02 dual-pipe thermostatic set DN50, angled 1/2"x3/4", nickel - W911-012-928-01
Mexen G02 dual-pipe thermostatic set DN50, angled 1/2"x3/4", nickel - W911-012-928-01 Mexen G02 dual-pipe thermostatic set DN50, angled 1/2"x3/4", nickel - W911-012-928-01
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G02
Ean:
5905315237217
Index:
W911-012-928-01
Connection diameter:
G 1/2"
Connection diameter:
G 3/4"
Type:
Angular
Colour:
Nickel

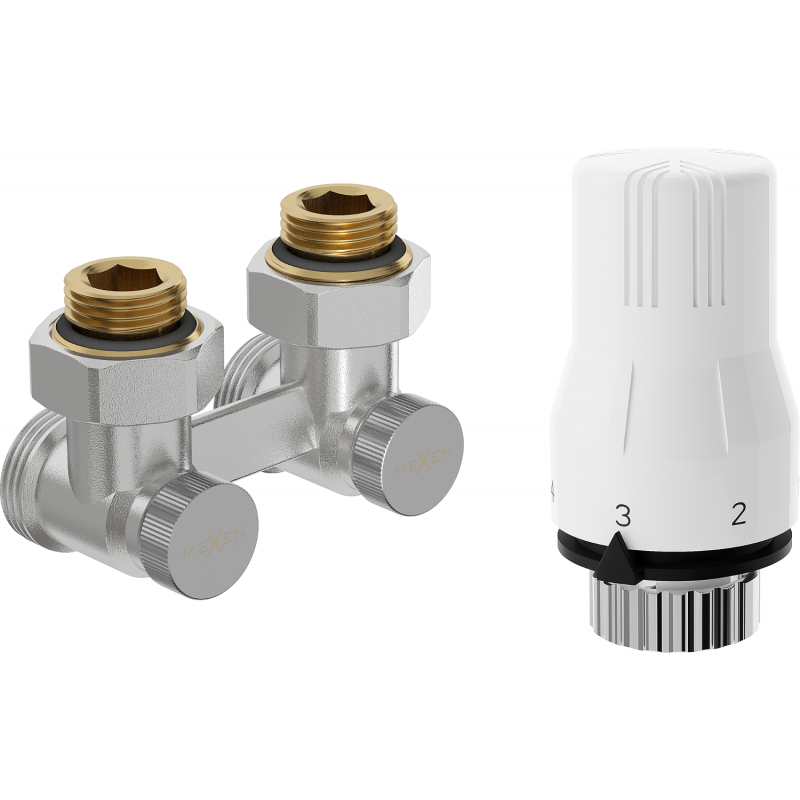

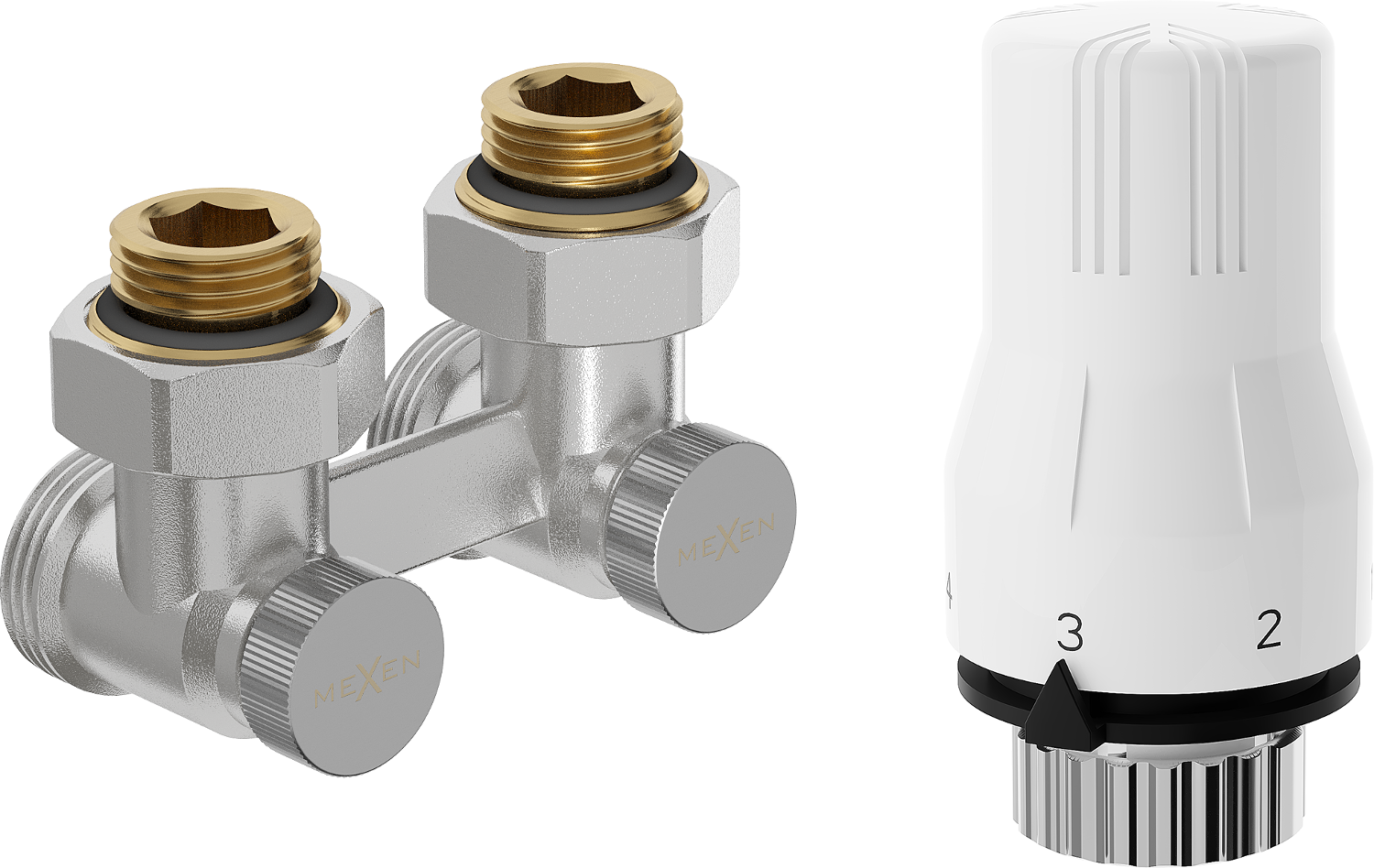

Mexen G02 dual-pipe thermostatic set DN50, angled 1/2"x3/4", nickel - W911-012-928-01

The Mexen G02 dual-pipe thermostatic set DN50, angled 1/2"x3/4", nickel is a high-quality product that offers durability and excellent temperature control. Made from brass, it is resistant to high temperatures up to 120°C and pressure up to 10 bar. Available in an elegant nickel colour, with a white head, these valves are ideal for aesthetic finishes. Precise temperature regulation in the range of 0-29°C with frost protection makes it an ideal choice for modern heating installations.

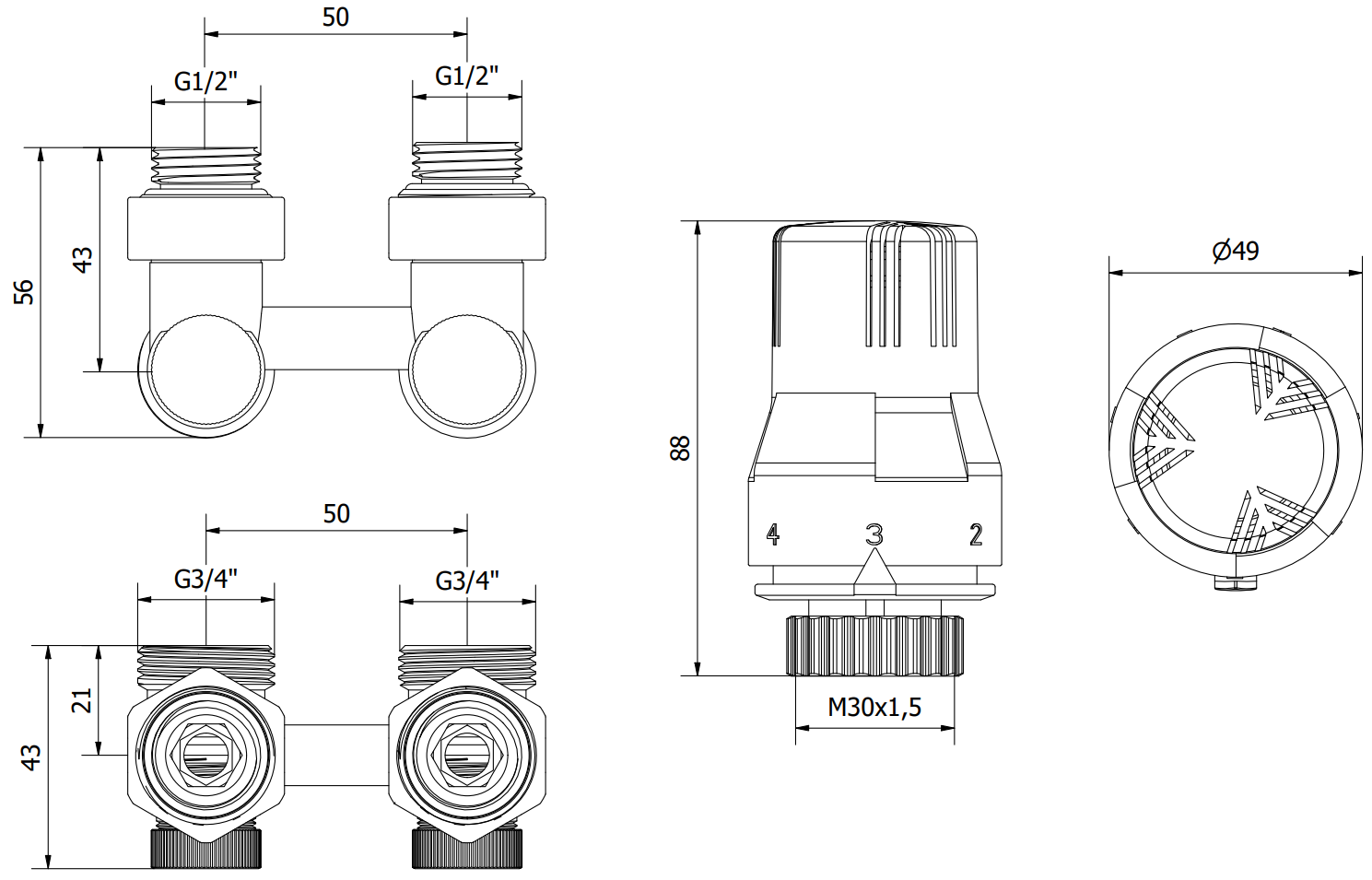

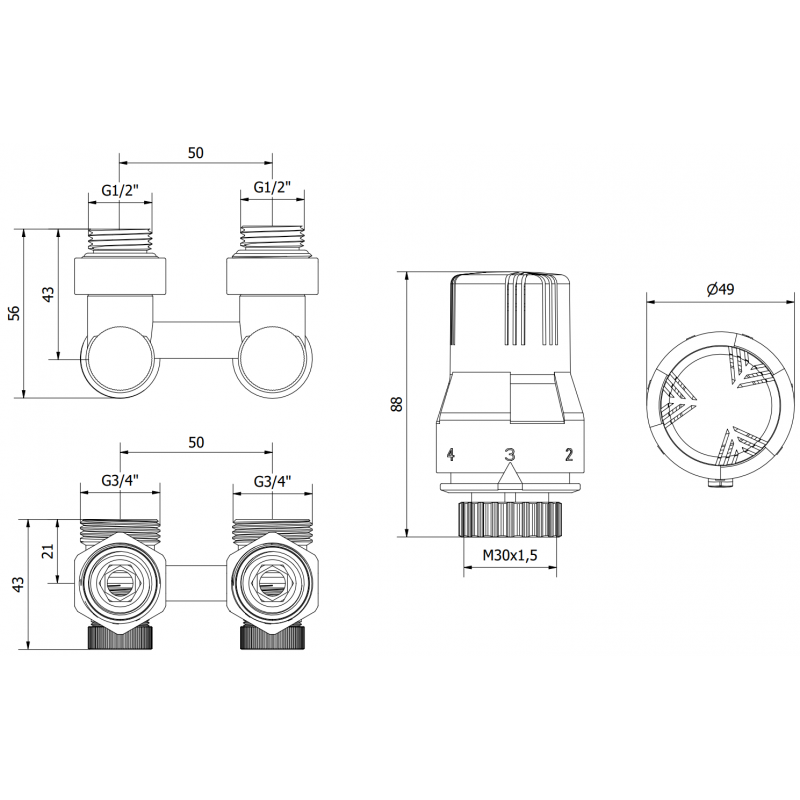

Technical data:

Material of valves: Brass

Colour of valves: Nickel

Valve connection diameter: G 1/2" and G 3/4"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Colour of the head: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G02
Type
Angular
Colour
Nickel
Connection diameter
G 1/2" , G 3/4"
Cover
No
User Manual
Download
Warranty conditions
Download
Manufacturer
See
