Mexen G00 angular thermostatic set with S cover, Duplex, DN50, black - W907-900-910-70
Mexen G00 angular thermostatic set with S cover, Duplex, DN50, black - W907-900-910-70 Mexen G00 angular thermostatic set with S cover, Duplex, DN50, black - W907-900-910-70 Mexen G00 angular thermostatic set with S cover, Duplex, DN50, black - W907-900-910-70
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G00
Ean:
5905315237316
Index:
W907-900-910-70
Colour:
Black
Connection diameter:
G 1/2"
Type:
Angular
Series:
G00
Colour - Black - ()

Mexen G00 angular thermostatic set with S cover, Duplex, DN50, black - W907-900-910-70

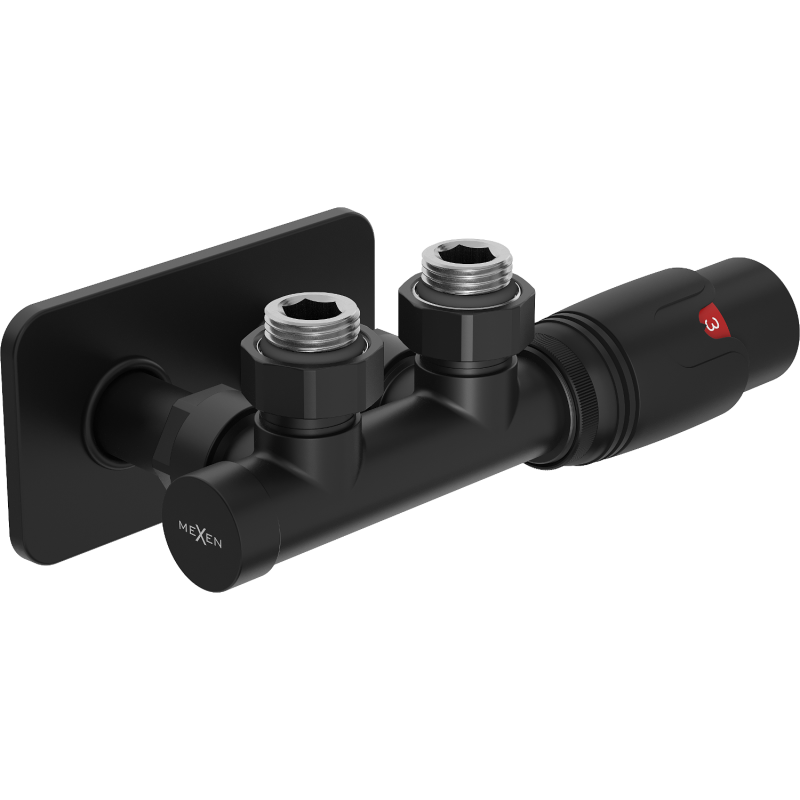

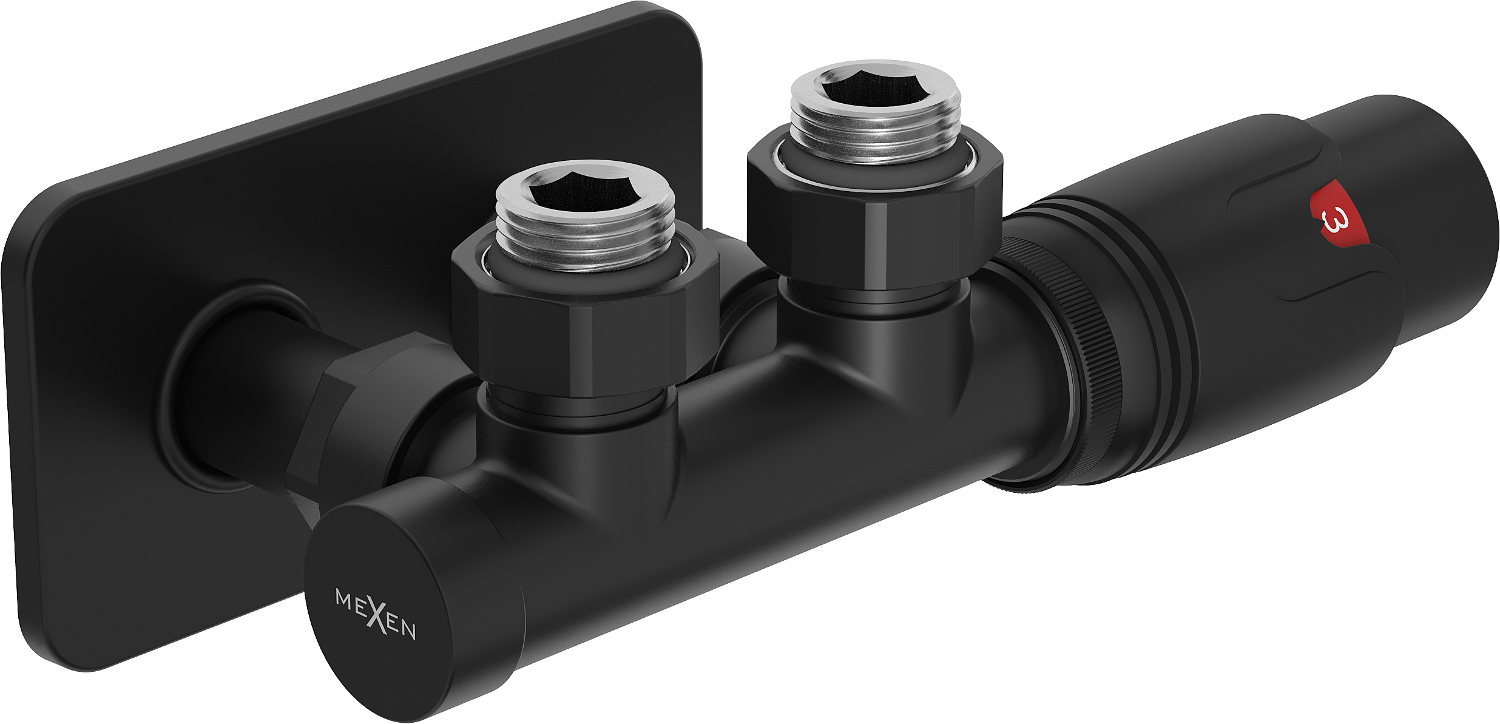

The Mexen G00 angular thermostatic set with S cover, Duplex, DN50, black offers exceptional quality thanks to its solid brass construction. Its elegant anthracite colour suits modern interiors. The valve has a connection diameter of G 1/2" and a maximum operating temperature of 120°C and pressure of up to 10 bar. The bottom connection and a temperature adjustment range from 0 to 29°C provide versatility. Frost protection and the possibility to connect the head from both sides increase functionality.

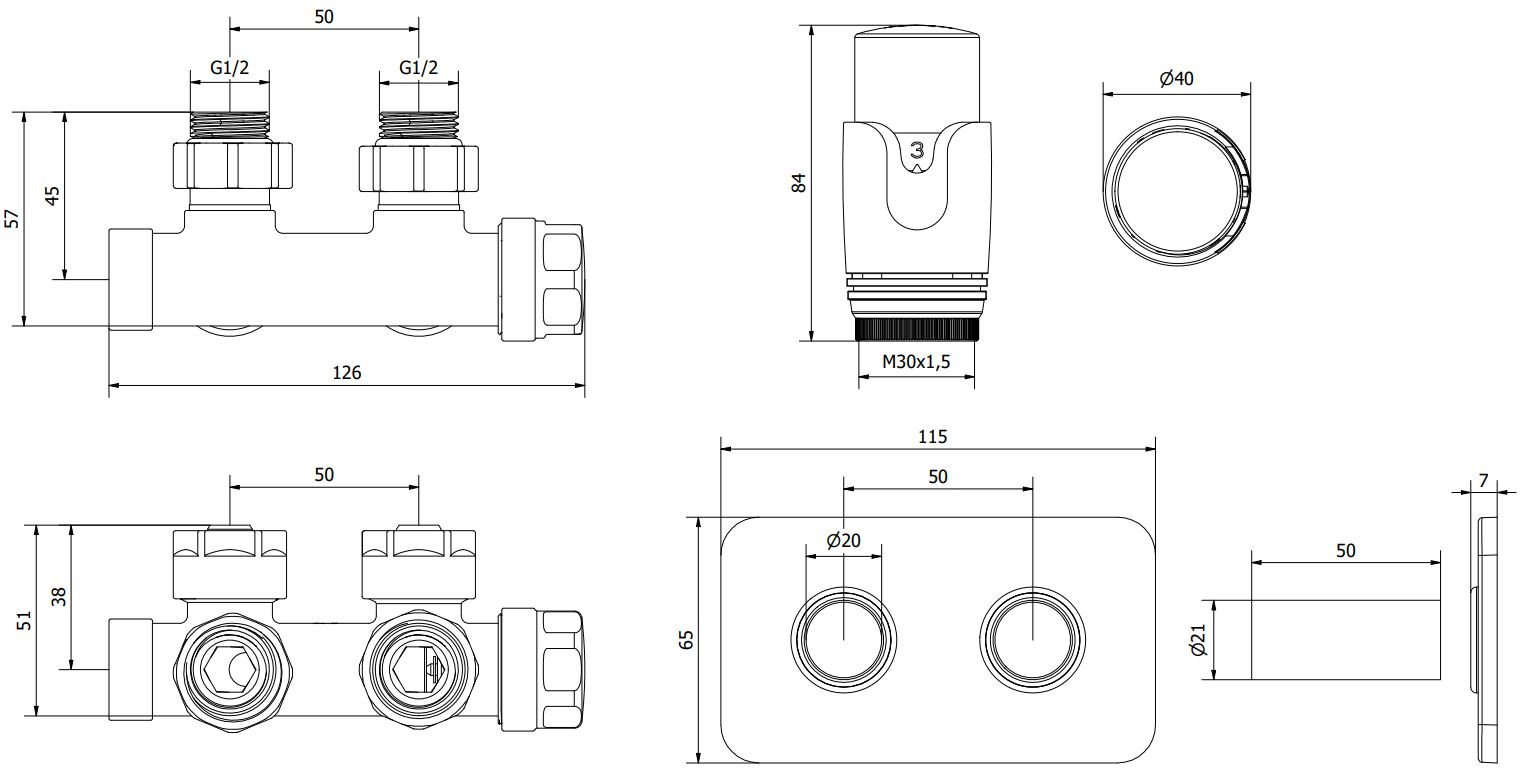

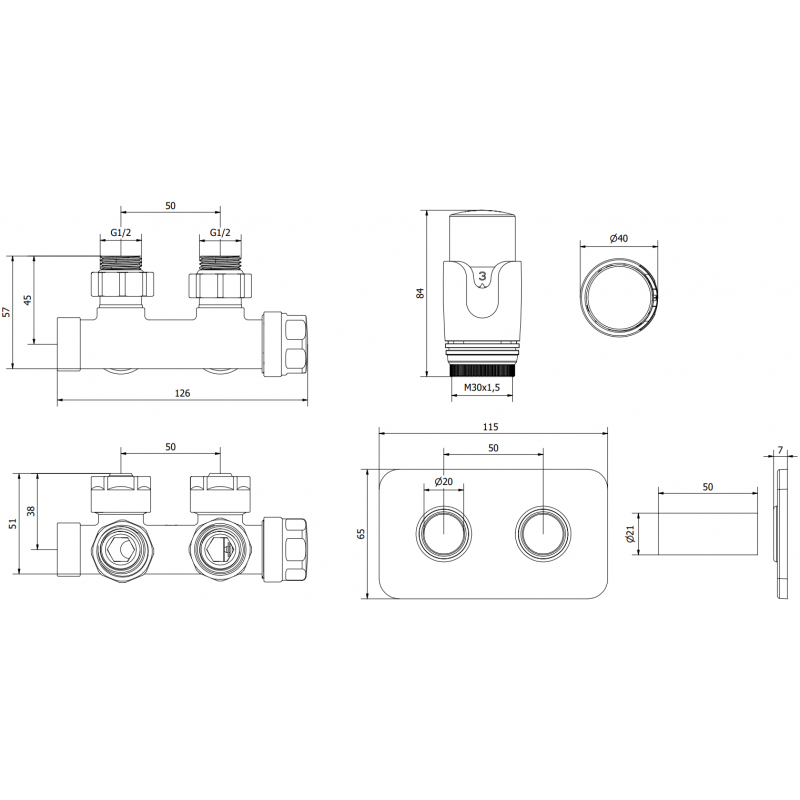

Technical data:

Valve material: Brass

Valve colour: Black

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum operating pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Cover colour: Black

Escutcheon material: Stainless steel

Escutcheon width: 115 x 65 mm

Escutcheon height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner sleeve diameter: 20 mm

Hole spacing for radiator connections: 50 mm

The cover consists of a double escutcheon and two sleeves

Includes additional fittings for 16x2 mm multi-layer pipes and 15 mm copper pipe fittings

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G00
Type
Angular
Colour
Black
Connection diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
Manufacturer
See
