Mexen Uni-Term radiator valve angled/straight, Duplex, DN50, chrome - W908-000-01

The Mexen angle/straight radiator valve, Duplex, DN50, chrome, is a versatile solution for heating installations. Made of brass, resistant to high temperatures (up to 120°C) and pressure (up to 10 bars), ensuring reliability. The universal connection allows installation both in the wall and floor, and the ability to connect the head from the left or right side increases installation flexibility. The set includes connectors for multi-layer pipes (16x2 mm) and copper pipes (15 mm), ensuring completeness.

Technical data:

Material: Brass

Color: Chrome

Connector diameter: G 1/2"

Thread for head: M30 x 1.5 mm

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

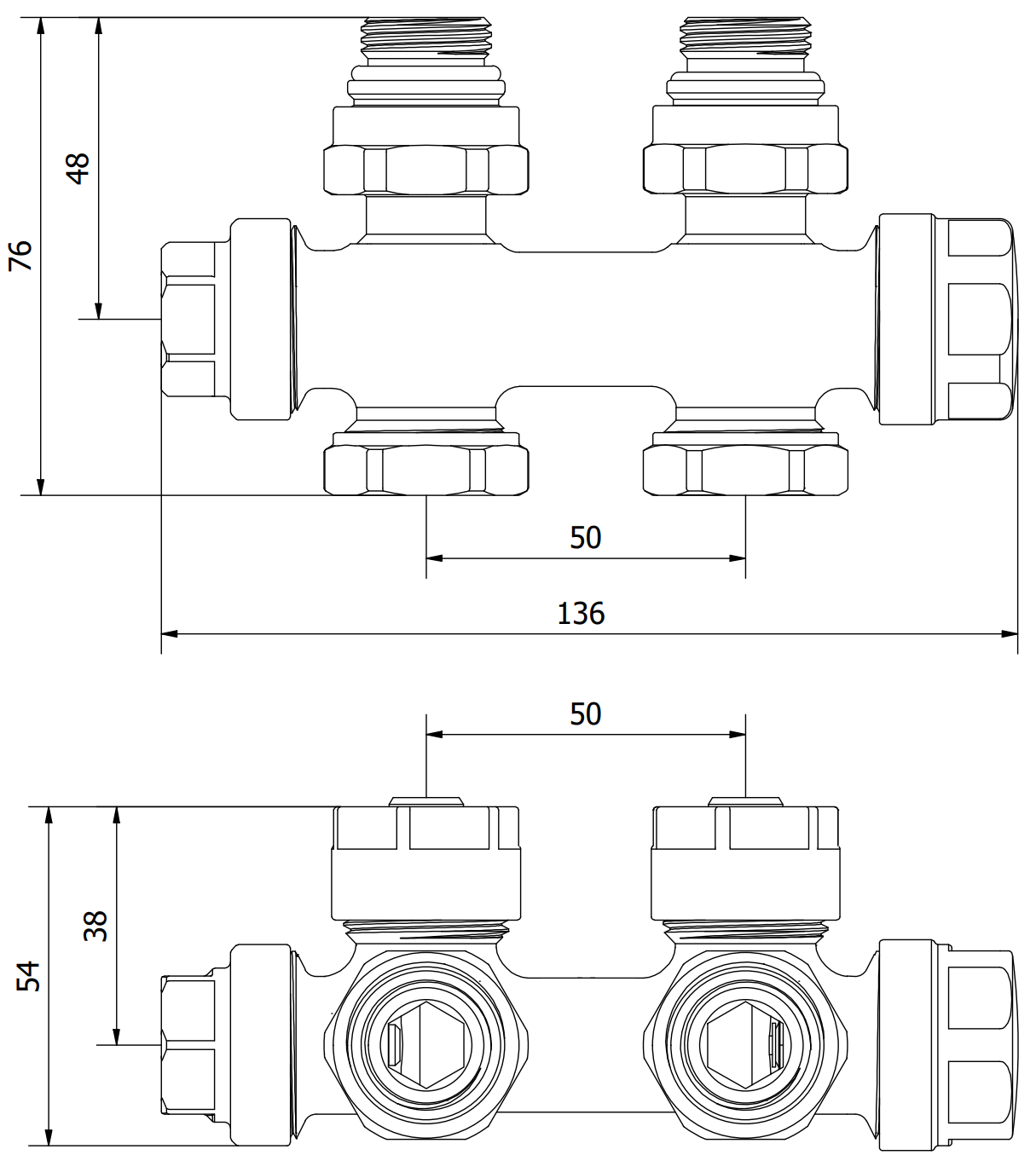

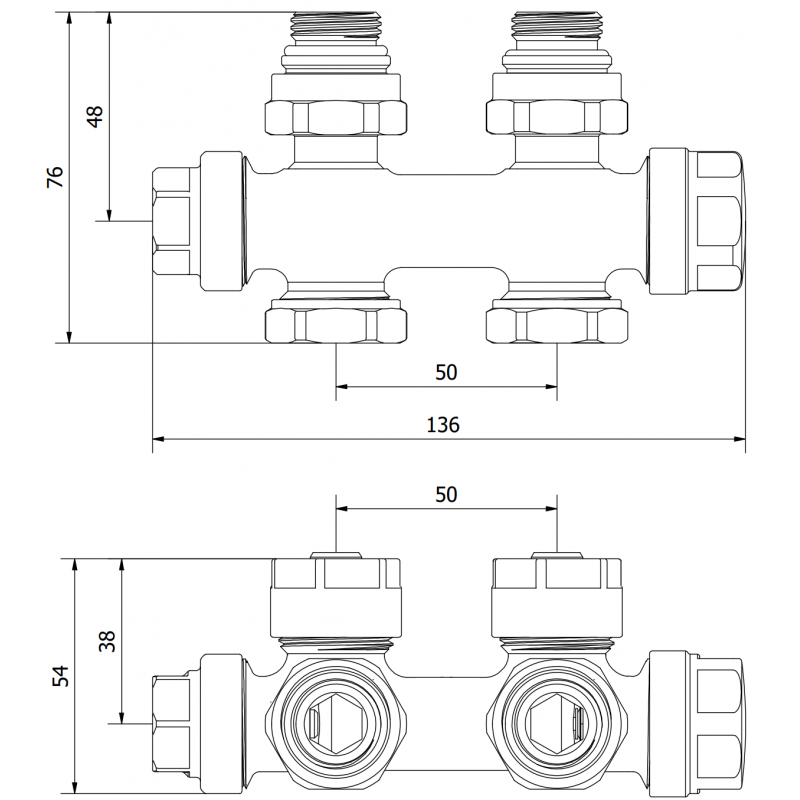

Bottom connection with 50 mm spacing

Ability to connect the head from the left or right side

Includes connectors for 16x2 mm multi-layer pipes and 15 mm copper pipes

Universal supply and shut-off valve for angle and straight connections, regardless of whether the connection is in the wall or the floor

Innovative solutions used in this product

Brass

Making the product from brass ensures its durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and fluctuating temperatures.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Standard Connection

A 1/2" threaded connection is a commonly used standard component in internal water installations. This makes connecting and installing additional installation components much easier and more intuitive.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
Uni-Term
Type
Straight , Angular
Colour
Chrome
Connection diameter
G 1/2"
