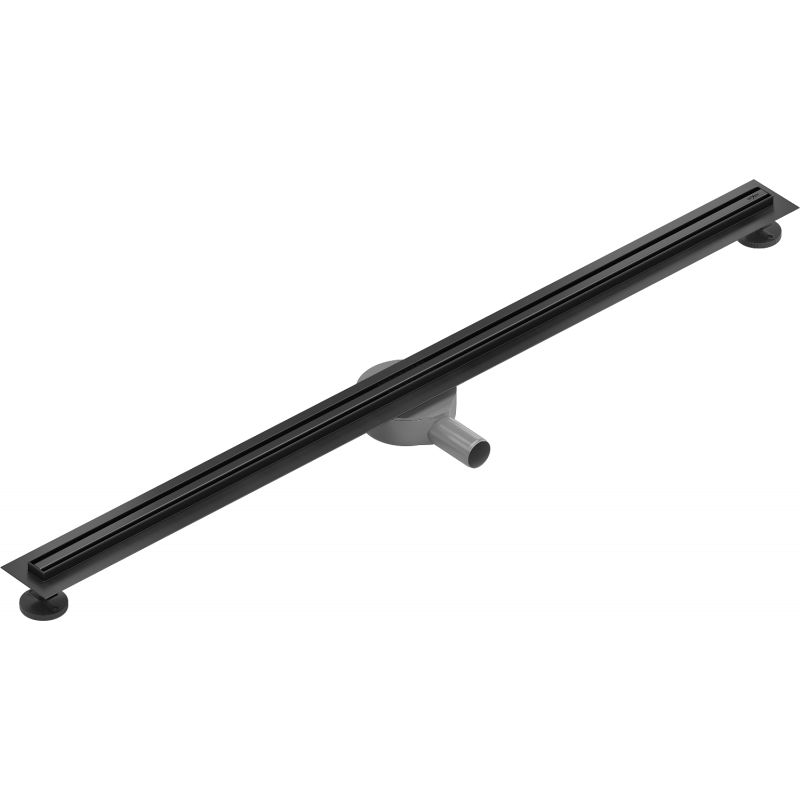

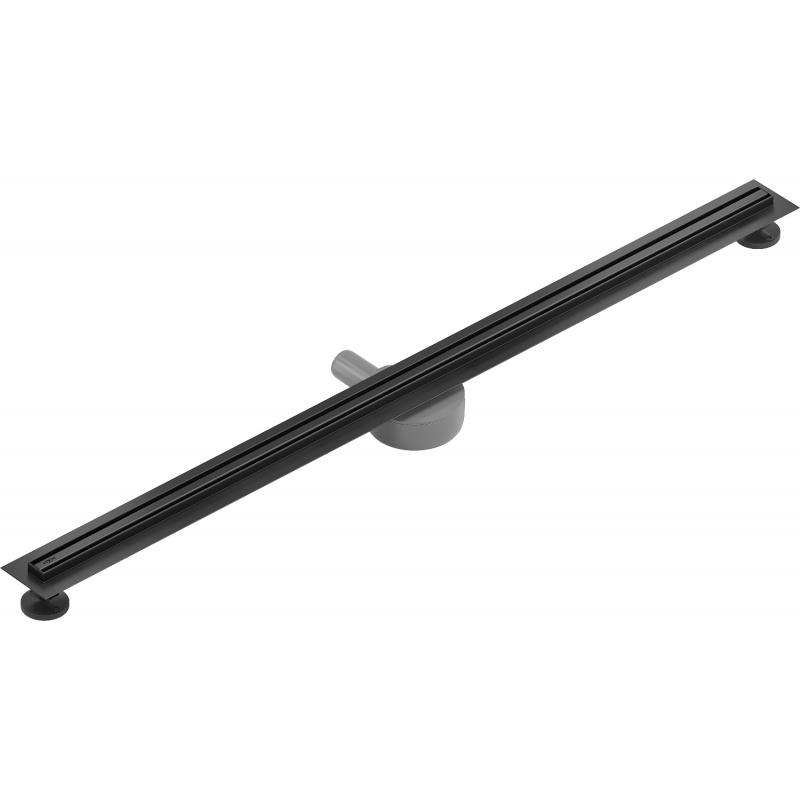

Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180

  • Mexen in Black
Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180
search
  • Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180
  • Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180
  • Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180
  • Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180
  • Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180
  • Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180
Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180
Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180 Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180 Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180 Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180 Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180 Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180
Stainless Steel Stainless Steel
Slim Slim
Low installation Low installation
Brand:
Mexen
Seria:
Flat 360° Slim
Ean:
5907709144026
Index:
1741180
Colour:
Black
Size:
160 cm
Rotary Siphon:
Yes
In the set:
Complete set
Size - 160 cm - ()
60 cm
70 cm
80 cm
90 cm
100 cm
110 cm
120 cm
130 cm
140 cm
150 cm
160 cm
180 cm
200 cm
Colour - Black - ()
Colour Gold
Colour Inox
Colour Black
Colour White
Colour Rose gold

Mexen Flat 360° Slim Rotating Linear Drain 180 cm, Black - 1741180

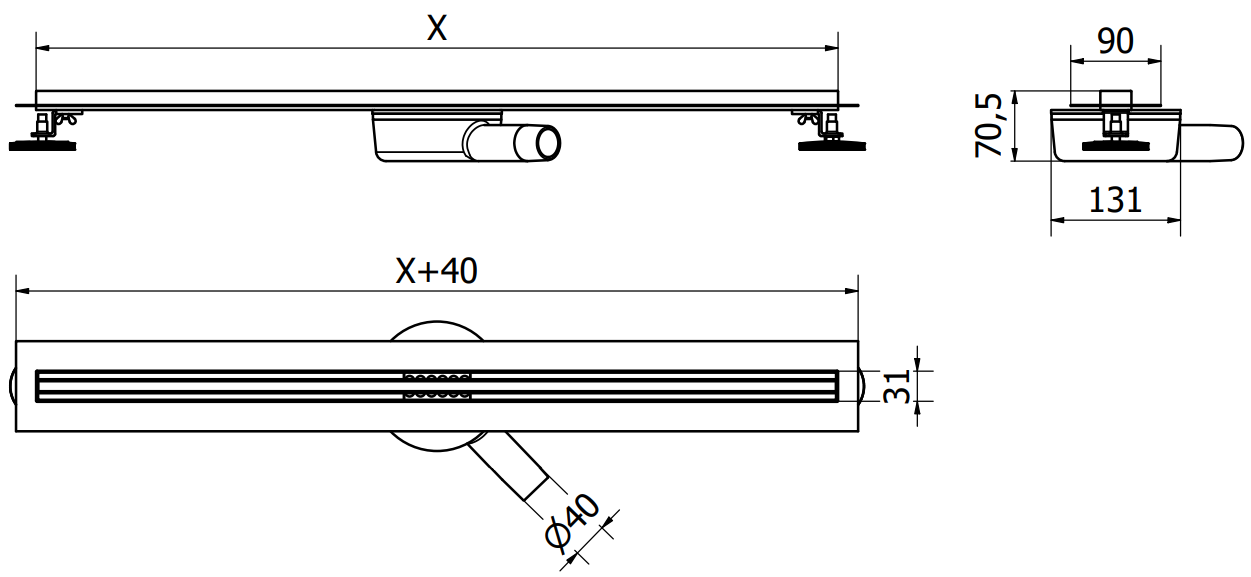

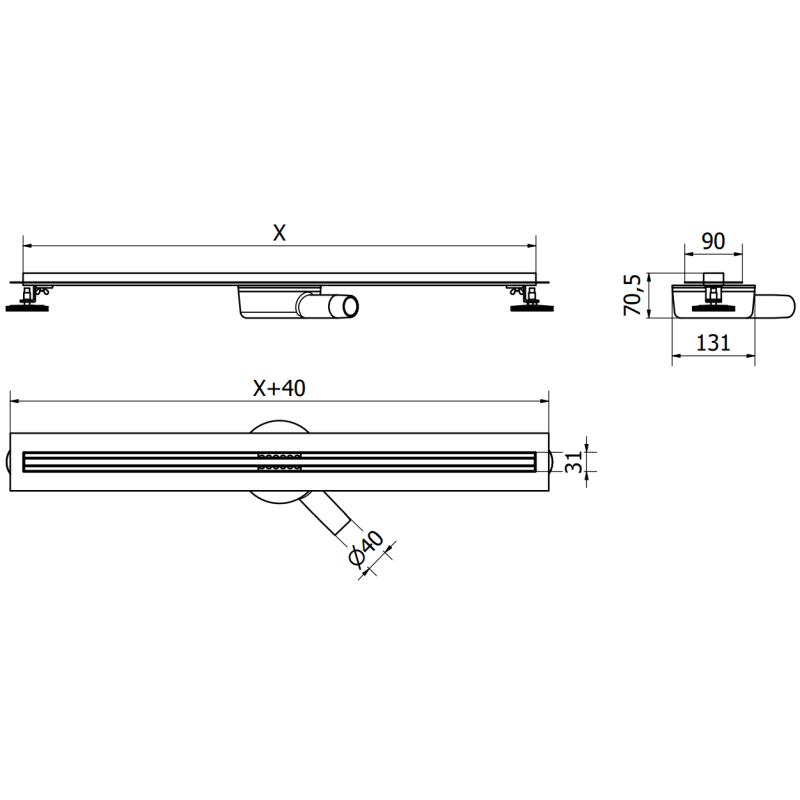

Technical data:

Material: Stainless Steel AISI 304

Finish: Black

Width: 180 cm

Cover width: 31 mm

Mounting depth: 52 mm

Capacity: 50 l/min

Surrounding flange - 2 cm

Grate depth - 23.5 mm

Gutter and grate thickness - 1.2 mm

Rotating siphon: Yes

Tile embedding possibility: No

Included:

Cover with damping spacers

Removable dirt filter

Odour trap siphon

Water draining gutter

Mounting stabilizers

Adjustable legs

Reduction 50/40 mm

Sealing sleeve

Hook for removing cover

Innovative solutions used in this product

Stainless Steel

This product is made from the highest quality AISI 304 stainless steel, known for its high resistance to corrosion and damage. It is a robust material that ensures long-lasting, reliable use.

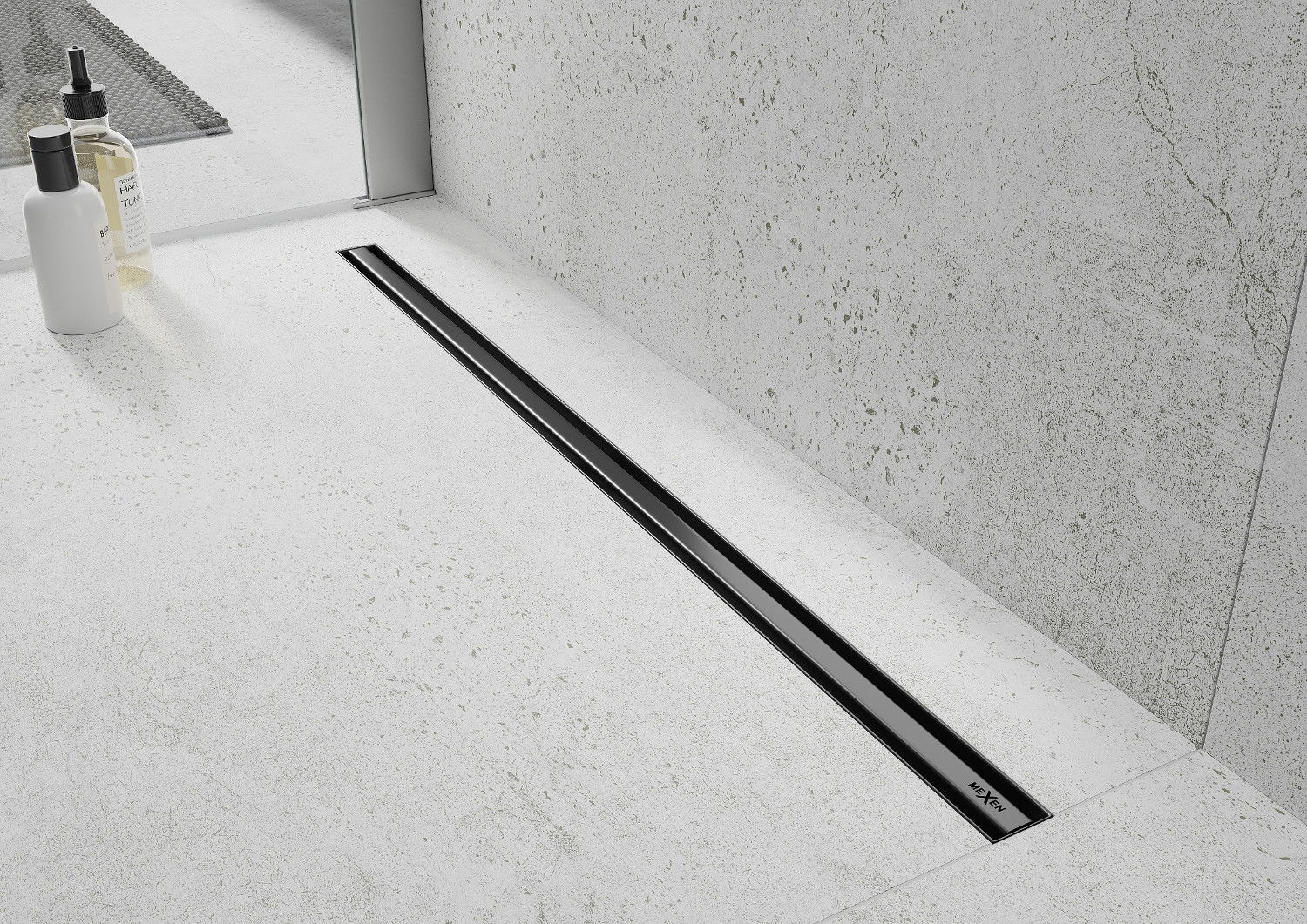

Slim

The linear drain grate is exceptionally narrow, with a width of just 31 mm. Its thin design perfectly complements the modern bathroom interior, giving a sense of lightness. An excellent choice for minimalist arrangements.

Low installation

The linear drain is mounted at a depth of only 52 mm. The shallow depth allows for easier preparation of the surface for the drain installation and easy leveling, ensuring high aesthetics and effective water drainage.

High throughput

Throughput of 40l/min, which means that drainage in one minute is able to discharge up to 50 litres of water. This allows the user to enjoy the comfort of a shower without worrying about an excessive amount of accumulated water.

Rotary siphon

The outlet is equipped with a rotary siphon (in a 360° range). It provides greater installation flexibility, allowing easy adjustment to drainage pipes even in hard-to-reach areas. A tailored and convenient installation in any location.

Stops unpleasant odours

The drain is equipped with a trap, whose task is to discharge used water while providing effective protection against the backflow of unpleasant odours from the sewage system. Comfort of use and a high level of hygiene.

Removable dirt filter

A system that makes cleaning the siphon even easier and faster. Simply remove the top, movable part, remove the dirt, and rinse it under water. An ideal support in maintaining hygiene and cleanliness in the bathroom.

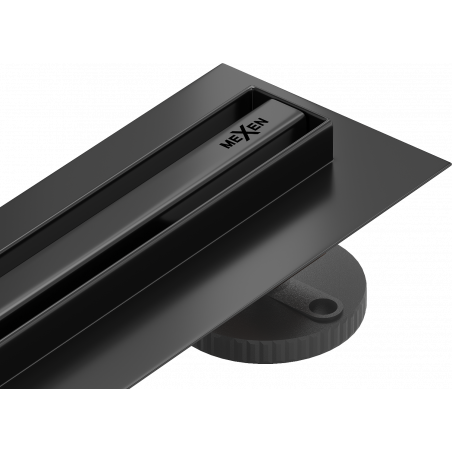

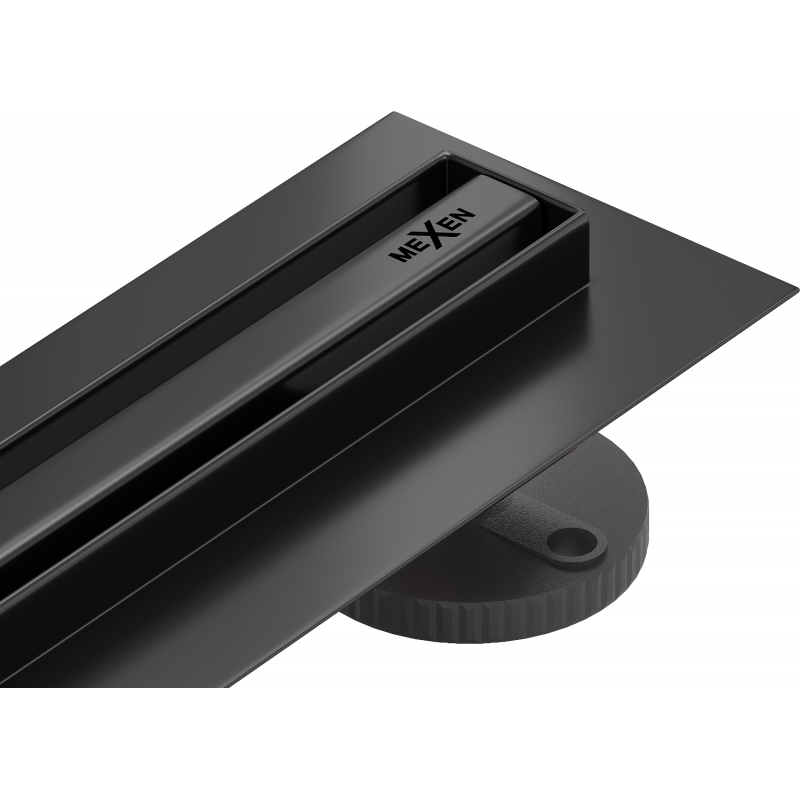

Damping spacers

Damping spacers ensure the grille is evenly positioned, providing an aesthetic appearance. They effectively prevent the grate from rubbing against the housing and reduce the noise generated when water falls directly onto the drain.

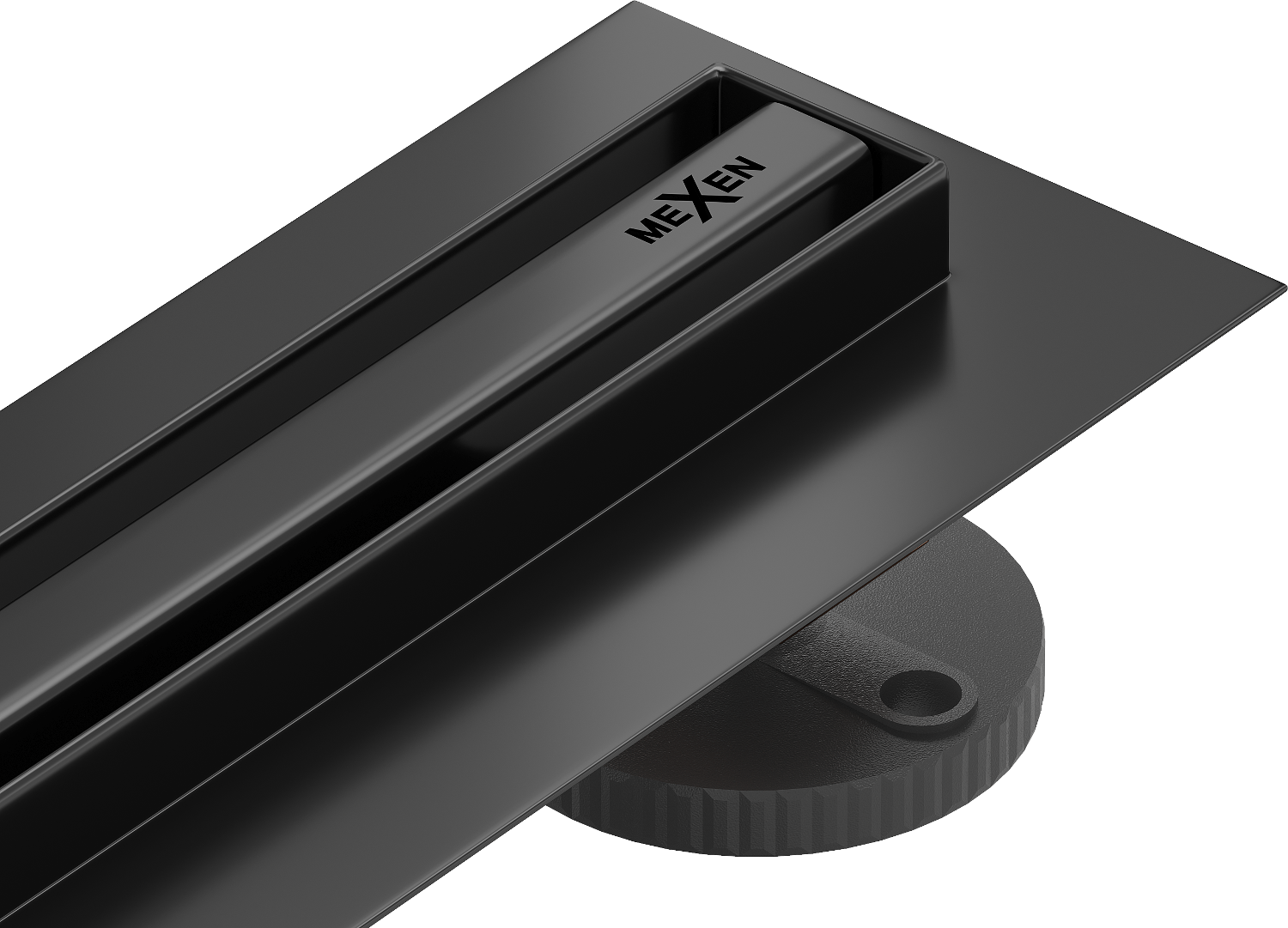

Adjustable Feet

The drain is equipped with adjustable feet, which allow for setting the appropriate height of the drain and leveling on an uneven surface. This way, the drain is even better suited to the conditions of the particular bathroom.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Hygiene Certificate PZH

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it in no way adversely affects human health and the natural environment. No. B.BK.60110.1719.2023 valid until 14.02.2027

Serial
Flat 360° Slim
Size
160 cm
Colour
Black
In the set
Complete set
Slim version
Yes
Rotary Siphon
Yes
Possibility of Installing a Tile
No
User manual
Download
Safety Information
Download
Warranty conditions
Download
PZH Certificate
Download
Manufacturer
See
